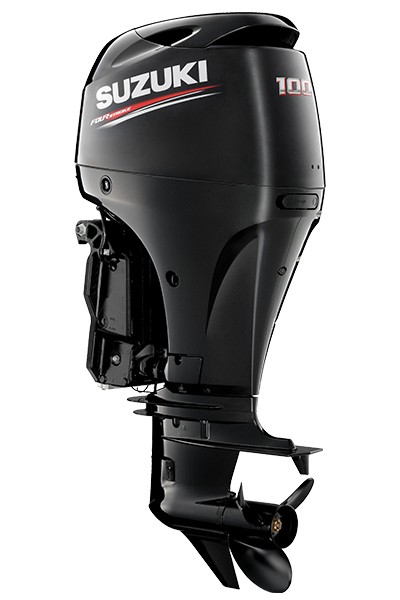

DF100B

100 Hp four stroke
DF100B
Features
Two-stage   gear reduction system Standard
Offset   driveshaft Standard
Over-rev.   limiter Standard
Suzuki   Lean Burn Control System Standard
Suzuki   water detecting system Standard
Start   system Electric start
Multi-point   sequential electronic fuel injection Standard
Low oil   pressure caution Standard
Suzuki   anti-corrosion system Standard
16-valve   DOHC (dual overhead cam) design Standard
Maintenance-free   timing chain Standard
Power   trim & tilt Standard
Gear   shift F-N-R
Quiet   operation Standard

Specifications
Shaft   length L: 508mm (20") | X: 635mm   (25")
Starting   system Electric
Weight L: 157kg | X: 161kg
Engine   type DOHC 16-valves
Fuel   delivery system Multi-point electronic fuel   injection
No. of   cylinders In-line 4
Displacement 1,502cm3
Bore x   Stroke 75mm × 85mm
Maximum   output 73.6kW
Full   throttle operating range 5,700–6,300rpm
Steering Remote
Oil pan   capacity 4.0 litres
Ignition   system Fully transistorised
Alternator 12V 27A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.59:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 13"–25"
Fuel   tank capacity 25L (optional)
Warranty 5 years for recreational use
