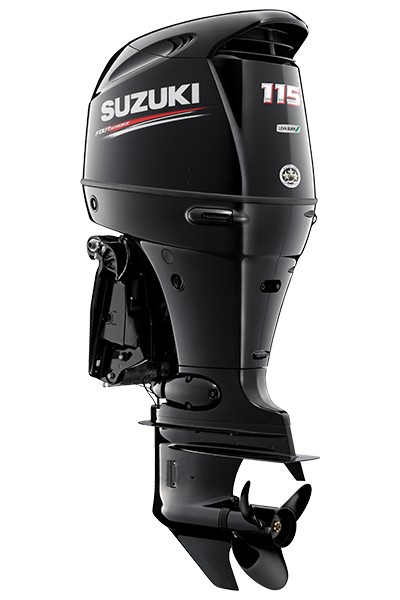

DF115A

115 Hp four stroke
DF115A
Features
Suzuki   easy start system Standard
Multi-point   sequential electronic fuel injection Standard
Offset   driveshaft Standard
Over-rev.   limiter Standard
Low oil   pressure caution Standard
Speedometer   pickup on gear case Standard
Suzuki   anti-corrosion system Standard
Suzuki   Lean Burn Control system Standard

Specifications
Shaft   length L: 508mm (20") | X: 635mm   (25")
Starting   system Electric
Weight L: 182kg | X: 187kg
Engine   type DOHC 16-valves
Fuel   delivery system Multi-point sequential   electronic fuel injection
No. of   cylinders In-line 4
Piston   displacement 2,044cm3
Bore x   Stroke 86mm x 88mm
Maximum   output 84.6kW
Full   throttle operating range 5,000–6,000rpm
Steering Remote
Oil pan   capacity 5.5 litres
Ignition   system Fully-transistorised
Alternator 12V 40A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.59:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 15"–23" (Alloy)   15"–25" (s/s)
Warranty 5 years for recreational use
