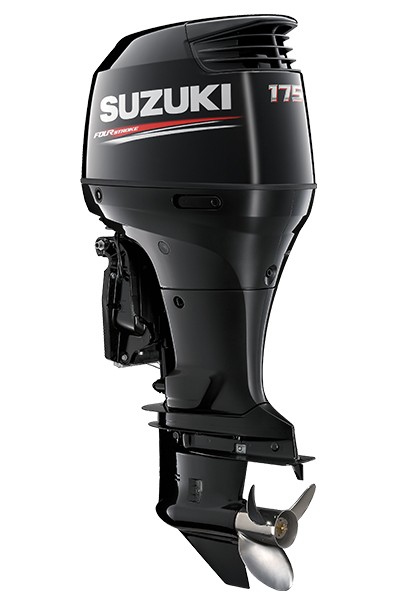

DF175

175 Hp four stroke
DF175
Features
Start   system Electric start
Multi-point   sequential electronic fuel injection Standard
Variable   valve timing Standard
Two-stage   gear reduction system Standard
Offset   driveshaft Standard
Over-rev.   limiter Standard
Low oil   pressure caution Standard
Speedometer   pickup on gear case Standard
Suzuki   anti-corrosion system Standard
16-valve   DOHC (dual overhead cam) design Standard

Specifications
Shaft   length L: 508mm (20") | X: 635mm   (25")
Starting   system Electric
Weight L: 232kg | X: 237kg
Engine   type DOHC 16-valve
Fuel   delivery system Multi-point sequential   electronic fuel injection
No. of   cylinders In-line 4
Piston   displacement 2.867cm3
Bore x   Stroke 97mm x 97mm
Maximum   output 129kW
Full   throttle operating range 5,500–6,100rpm
Steering Remote
Oil pan   capacity 8.0 litres
Ignition   system Fully-transistorised
Alternator 12V 44A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.50:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 17"–27" (s/s)
Warranty 5 years for recreational use
