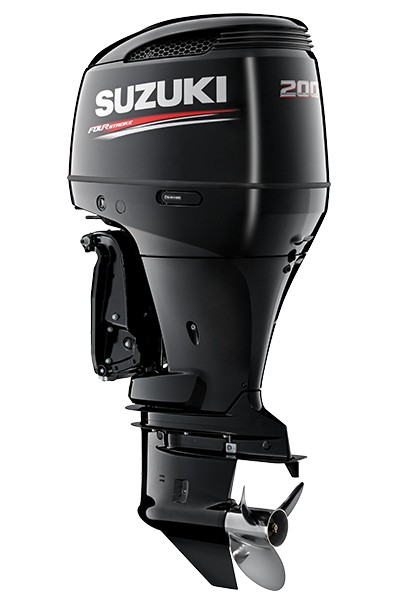

DF200

200 Hp four stroke
DF200
Features
Start   system Electric start
Multi-point   sequential electronic fuel injection Standard
Two-stage   gear reduction system Standard
Offset   driveshaft Standard
Over-rev.   limiter Standard
Low oil   pressure caution Standard
Speedometer   pickup on gear case Standard
Suzuki   anti-corrosion system Standard

Specifications
Shaft   length L: 508mm (20") | X: 635mm   (25")
Starting   system Electric
Weight L: 257kg | X: 263kg | XX: 268kg
Engine   type DOHC 24–valve
Fuel   delivery system Multi-point sequential   electronic fuel injection
No. of   cylinders V6 (55-degree)
Piston   displacement 3,614cm3
Bore x   Stroke 95mm x 85mm
Maximum   output 147.0kW
Full   throttle operating range 5,000–6,000rpm
Steering Remote
Oil pan   capacity 8.0 litres
Ignition   system Fully-transistorised
Alternator 12V 54A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.29:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 17"–27.5" (s/s)
Warranty 5 years for recreational use
