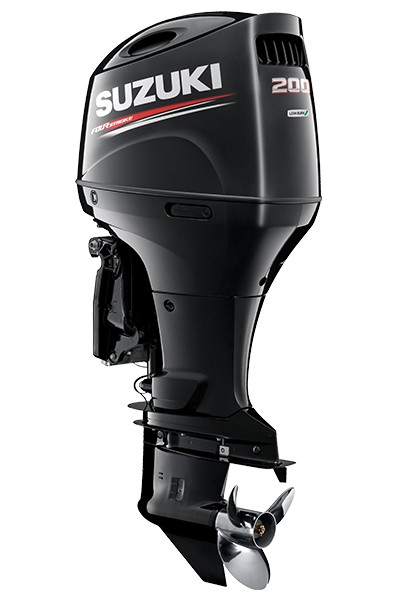

DF200A

200 Hp four stroke
DF200A
Features
Multi-point   sequential electronic fuel injection Standard
Offset   driveshaft Standard
Suzuki   anti-corrosion system Standard
Suzuki   Lean Burn Control system Standard
Variable   valve timing Standard
Two-stage   gear reduction system Standard
Low oil   pressure caution Standard
Fresh   water flushing system Standard
Suzuki   easy start system Standard
Power   trim & tilt Standard
Start   system Electric start
Over-rev.   limiter Standard
Speedometer   pickup on gear case Standard
16-valve   DOHC (dual overhead cam) design Standard
Maintenance-free   timing chain Standard

Specifications
Shaft   length X: 635mm (25")
Starting   system Electric
Weight X: 240kg
Engine   type DOHC 16-valve
Fuel   delivery system Multi-point sequential   electronic fuel injection
No. of   cylinders In-line 4
Piston   displacement 2,867cm3
Bore x   Stroke 97mm x 97mm
Maximum   output 147.0kW
Full   throttle operating range 5,500–6,100rpm
Steering Remote
Oil pan   capacity 8.0 litres
Ignition   system Fully-transistorised
Alternator 12V 44A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.50:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 17"–27.5"
Warranty 5 years for recreational use
