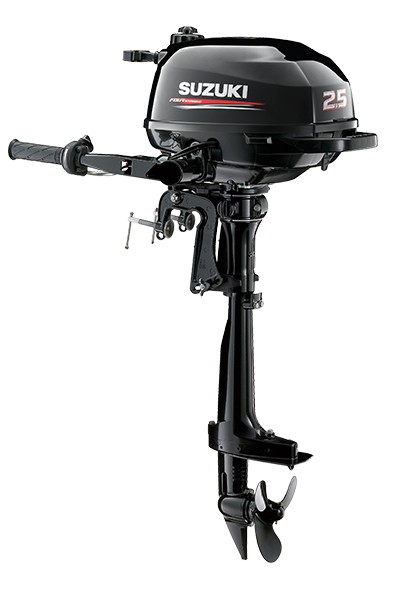

DF2.5

2.5 Hp four stroke
DF2.5
Features
Over-rev.   limiter Standard
Start   system Manual
Suzuki   anti-corrosion system Standard
Tiller   handle Standard

Specifications
Shaft   length S: 381mm (15")
Starting   system Manual
Weight S: 13.5kg
Engine   type OHV
Fuel   delivery system Carburettor
No. of   cylinders 1
Piston   displacement 68cm3
Bore x   Stroke 48mm x 38mm
Maximum   output 1.8kw
Full throttle operating range 5,250–5,750rpm
Steering Tiller
Oil pan   capacity 0.38 litres
Ignition   system Transistorized ignition
Engine   mounting Bushing type
Trim   method Manual trim & tilt
Gear   ratio 2.15:1
Gear   shift F-N
Exhaust Above prop exhaust
Propeller   selection (pitch) 5"–3/8" (alloy)
Fuel   tank capacity Integral 1L
Warranty 5 years for recreational use
