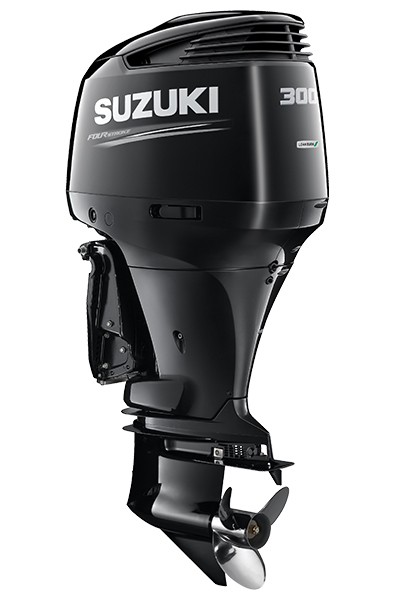

DF300AP

300 Hp four stroke
DF300AP
Features
Suzuki   easy start system Standard
Multi-point   sequential electronic fuel injection Standard
Variable   valve timing Standard
Two-stage   gear reduction system Standard
Offset   driveshaft Standard
Over-rev.   limiter Standard
Low oil   pressure caution Standard
Speedometer   pickup on gear case Standard
Suzuki   anti-corrosion system Standard
Suzuki   Lean Burn Control system Standard
Selective   rotation Standard
Suzuki   precision control Standard

Specifications
Shaft   length X: 635mm (25") | XX: 762mm   (30")
Starting   system Electric
Weight X: 290kg | XX: 299kg
Engine   type DOHC 24-valve
Fuel   delivery system Multi-point sequential   electronic fuel injection
No. of   cylinders V6 (55-degree)
Piston   displacement 4,028cm3
Bore x   Stroke 98mm x 89mm
Maximum   output 220.7kW
Full   throttle operating range 5,700–6,300rpm
Steering Remote
Oil pan   capacity 8.0 litres
Ignition   system Fully-transistorised
Alternator 12V 54A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.08:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 17"–27.5" (s/s)
Fuel minimum 95 (RON) octane
Warranty 5 years for recreational use
