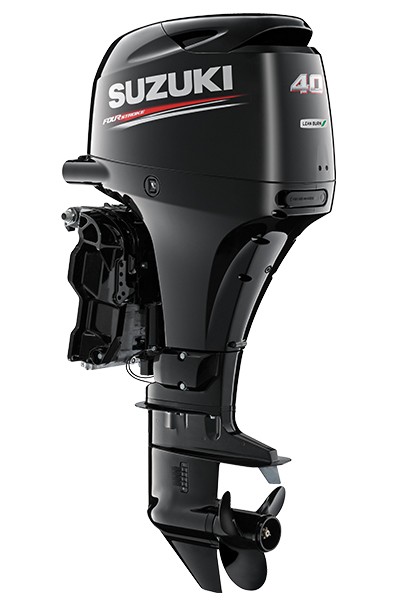

DF40A

40 Hp four stroke
DF40A
Features
Suzuki   easy start system Standard
Multi-point   sequential electronic fuel injection Standard
Suzuki   Lean Burn Control system Standard
Large   capacity 19A alternator Standard
12-valve   DOHC (dual overhead cam) design Standard
Maintenance-free   timing chain Standard
Tiller   handle Standard

Specifications
Shaft   length L: 508mm (20")
Starting   system Electric easy start system
Weight L: 104kg
Engine   type DOHC 12-valve
Fuel   delivery system Multi-point sequential   electronic fuel injection
No. of   cylinders In-line 3
Piston   displacement 941cm3
Bore x   Stroke 72.5mm x 76.0mm
Maximum   output 29.4kW
Full   throttle operating range 5,000–6,000rpm
Steering Remote | Tiller
Oil pan   capacity 2.7 litres
Ignition   system Fully-transistorised
Alternator 12V 19A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.27:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 9"–11"
Fuel   tank capacity 25L (Optional)
Warranty 5 years for recreational use
