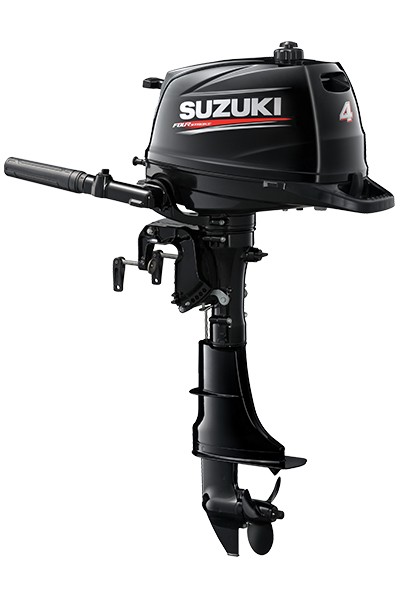

DF4a

4 Hp four stroke
DF4A
Features
Over-rev.   limiter Standard
Fresh   water flushing system Standard
Shallow   water drive Standard
Start   system Manual
Lightweight 23.5kg (S-shaft) Standard
Three-way   storage Standard
Highly   reliable lubrication system Standard
Easy   after-storage start Standard
New   tilt system Standard
Improved   portability Standard
First-in-its-class   oil filter Standard

Specifications
Shaft   length S: 381mm (15")
Starting   system Manual
Weight S: 24kg
Engine   type OHV
Fuel   delivery system Carburettor
No. of   cylinders 1
Piston   displacement 138cm3
Bore x   Stroke 60.4mm x 48mm
Maximum   output 2.9kW
Full   throttle operating range 4,000–5,000rpm
Steering Tiller
Oil pan   capacity 0.7 litres
Ignition   system Digital CDI
Alternator 12V 5A (optional)
Engine   mounting Bushing type
Trim   method Manual trim & tilt
Gear   ratio 1.92:1
Gear   shift F-N-R
Exhaust Above prop hub exhaust
Propeller   selection (pitch) 6"–7" (Alloy)
Fuel   tank capacity Integral 1L
Warranty 5 years for recreational use
