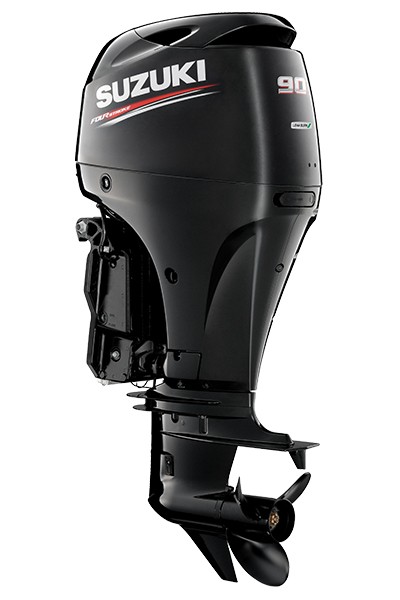

DF90A

90 Hp four stroke
DF90A
Features
Suzuki   easy start system Standard
Multi-point   sequential electronic fuel injection Standard
Two-stage   gear reduction system Standard
Offset   driveshaft Standard
Suzuki   anti-corrosion system Standard
Suzuki   Lean Burn Control system Standard
16-valve   DOHC (dual overhead cam) design Standard

Specifications
Shaft   length L: 508mm (20") | X: 635mm   (25")
Starting   system Electric
Weight L: 156kg | X: 160kg
Engine   type DOHC 16-valves
Fuel   delivery system Multi-point electronic fuel   injection
No. of   cylinders In-line 4
Piston   displacement 1,502cm3
Bore x   Stroke 75mm × 85mm
Maximum   output 66.2kW
Full   throttle operating range 5,300–6,300rpm
Steering Remote | Tiller
Oil pan   capacity 4.0 litres
Ignition   system Fully transistorised
Alternator 12V 27A
Engine   mounting Shear mount
Trim   method Power trim & tilt
Gear   ratio 2.59:1
Gear   shift F-N-R
Exhaust Through prop hub exhaust
Propeller   selection (pitch) 13"–25"
Fuel   tank capacity 25L (Optional)
Warranty 5 years for recreational use
