DF9.9A

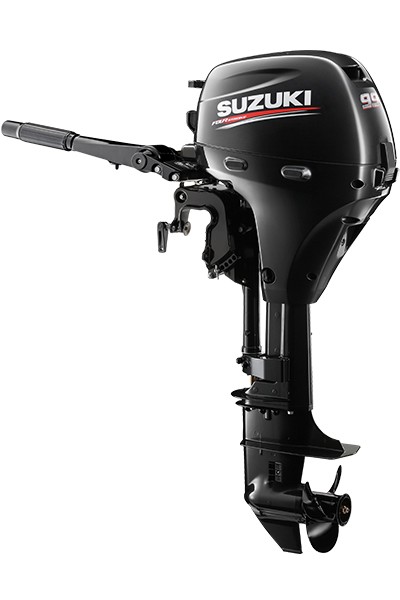

9.9 Hp four stroke
DF9.9A
Features
Over-rev.   limiter Standard
Low oil   pressure caution Standard
Fresh   water flushing system Standard
Start   system Electric or manual
Shallow   water drive Standard


Specifications
Shaft   length S: 381mm (15") | L: 508mm   (20")
Starting   system Electric or manual
Weight MS: 39.5kg | ML: 41.5kg | ES:   41kg | EL: 43.5kg
Engine   type SOHC
Fuel   delivery system Carburettor
No. of   cylinders In-line 2
Piston   displacement 208cm3
Bore x   Stroke 51mm x 51mm
Maximum   output 7.3kW
Full   throttle operating range 5,200–6,200rpm
Steering Tiller
Oil pan   capacity 0.8 litres
Ignition   system Digital CDI
Alternator 12V 6A (optional)
Engine   mounting Shear mount
Trim   method Manual trim & tilt
Gear   ratio 2.08:1
Gear   shift F-N-R
Exhaust Through prop hub
Propeller   selection (pitch) 7"–11" (Alloy)
Fuel   tank capacity Separate 12L
Warranty 5 years for recreational use
