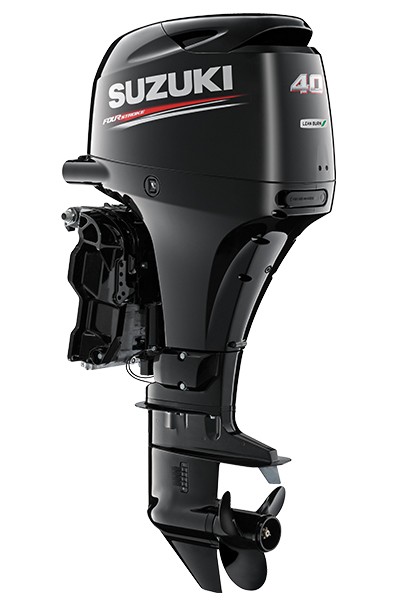

DF40A
40 Hp four stroke| DF40A | |
| Features | |
| Suzuki easy start system | Standard |
| Multi-point sequential electronic fuel injection | Standard |
| Suzuki Lean Burn Control system | Standard |
| Large capacity 19A alternator | Standard |
| 12-valve DOHC (dual overhead cam) design | Standard |
| Maintenance-free timing chain | Standard |
| Tiller handle | Standard |
| Specifications | |
| Shaft length | L: 508mm (20") |
| Starting system | Electric easy start system |
| Weight | L: 104kg |
| Engine type | DOHC 12-valve |
| Fuel delivery system | Multi-point sequential electronic fuel injection |
| No. of cylinders | In-line 3 |
| Piston displacement | 941cm3 |
| Bore x Stroke | 72.5mm x 76.0mm |
| Maximum output | 29.4kW |
| Full throttle operating range | 5,000–6,000rpm |
| Steering | Remote | Tiller |
| Oil pan capacity | 2.7 litres |
| Ignition system | Fully-transistorised |
| Alternator | 12V 19A |
| Engine mounting | Shear mount |
| Trim method | Power trim & tilt |
| Gear ratio | 2.27:1 |
| Gear shift | F-N-R |
| Exhaust | Through prop hub exhaust |
| Propeller selection (pitch) | 9"–11" |
| Fuel tank capacity | 25L (Optional) |
| Warranty | 5 years for recreational use |
